Finding Job Efficiency

On Job Completion

It is good practice to have a look at the resources your job used on completion, this way you can improve your job specifications in the future.

Once your job has finished check the relevant details using the tools: nn_seff or sacct For example:

Using nn_seff

nn_seff 30479534

Job ID: 1936245
Cluster: mahuika
User/Group: user/group
State: COMPLETED (exit code 0)
Cores: 1
Tasks: 1
Nodes: 1
Job Wall-time: 7.67% 00:01:09 of 00:15:00 time limit
CPU Efficiency: 98.55% 00:01:08 of 00:01:09 core-walltime
Mem Efficiency: 10.84% 111.00 MB of 1.00 GB

Notice that the CPU efficiency was high but the memory efficiency was low and consideration should be given to reducing memory requests for similar jobs. If in doubt, please contact support@nesi.org.nz for guidance.

nn_seff is based on the same numbers as are shown by sacct.

Using sacct

sacct --format="JobID,JobName,Elapsed,AveCPU,MinCPU,TotalCPU,Alloc,NTask,MaxRSS,State" -j <jobid>

Tip

If you want to make this your default sacct setting, run;

echo 'export SACCT_FORMAT="JobID,JobName,Elapsed,AveCPU,MinCPU,TotalCPU,Alloc%2,NTask%2,MaxRSS,State"' >> ~/.bash_profile
source ~/.bash_profile

Below is an output for reference:

       JobID    JobName    Elapsed     AveCPU     MinCPU   TotalCPU  AllocCPUS   NTasks     MaxRSS      State
------------ ---------- ---------- ---------- ---------- ---------- ---------- -------- ---------- ----------
3007056      rfm_ANSYS+   00:27:07                         03:35:55         16                      COMPLETED
3007056.bat+      batch   00:27:07   03:35:54   03:35:54   03:35:55         16        1  13658349K  COMPLETED
3007056.ext+     extern   00:27:07   00:00:00   00:00:00   00:00:00         16        1        89K  COMPLETED

All of the adjustments below still allow for a degree of variation. There may be factors you have not accounted for.

Walltime

From the Elapsed field we may want to update our next run to have a more appropriate walltime.

#SBATCH --time=00:40:00

Memory

The MaxRSS field shows the maximum memory used by each of the job steps (excluding file caches), so in this case 13 GB. For our next run we may want to set:

#SBATCH --mem=15G

Most simple HPC jobs read some inputs sequentially, do some computation, and then write out results sequentially. For those, RSS is a decent measure of their memory needs. However RSS only includes the main (or "anonymous") memory of the running program, so jobs which create large temporary files in memory (eg: in /tmp) will also need to request memory for those, and jobs which repeatedly re-read the same file (or parts of one, as when querying an indexed database) may benefit from requesting enough additional memory to let the Operating System cache that in memory for them.

CPUs

TotalCPU is the number of computation hours, in the best case scenario the computation hours would be equal to Elapsed x AllocCPUS.

In this case our ideal TotalCPU would be 07:12:00, as our job only managed 03:35:55 we can estimate the CPU usage was around 50%
It might be worth considering reducing the number of CPUs requested, however bear in mind there are other factors that affect CPU efficiency.

#SBATCH --cpus-per-task=10

During Runtime

In order to check in on a job that is running, you will need to ssh to the compute node where it it running.

Finding Job Node

If 'nodelist' is not one of the fields in the output of your sacct or squeue commands you can find the node a job is running on using the command; squeue -h -o %N -j <jobid> The node will look something like wbn123.

Note

If your job is using MPI it may be running on multiple nodes

Using htop

ssh -t wbn175 htop -u $USER

If it is your first time connecting to that particular node, you may be prompted:

The authenticity of host can't be established
Are you sure you want to continue connecting (yes/no)?

Reply yes. Y alone (upper or lower case) is not sufficient.

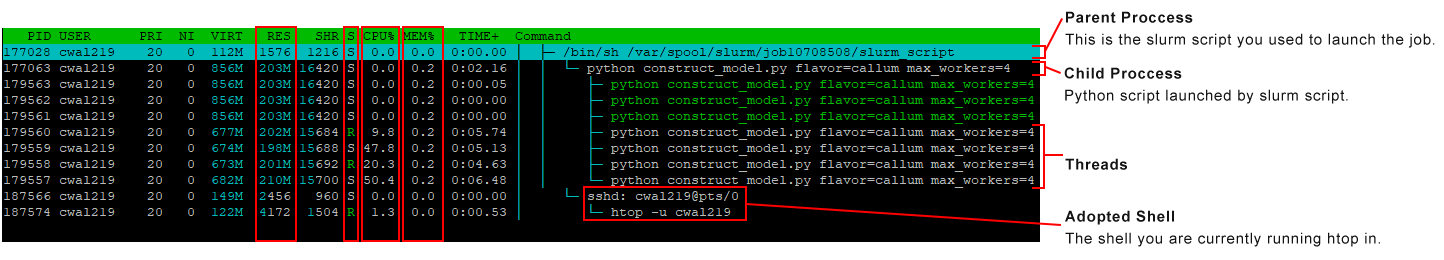

Focusing on the lower panel, you will see a printout of all of your current processes running on that node. If you have multiple jobs on the same node, they will all be shown (you can tell them apart by their parent process).

Processes in green can be ignored


RES - Current memory being used (same thing as 'RSS' from sacct)

S - State, what the thread is currently doing.

  • R - Running
  • S - Sleeping, waiting on another thread to finish.
  • D - Sleeping
  • Any other letter - Something has gone wrong!

CPU% - Percentage CPU utilisation.

MEM% - Percentage Memory utilisation.

Warning

If the job finishes, or is killed you will be kicked off the node. If htop freezes, type reset to clear your terminal.

Limitations of using CPU Efficiency

CPU efficiency, as described here, only represents the percentage of time the CPUs are in use. This is not enough to get a picture of overall job efficiency, as required CPU time may vary by number of CPUs.

The only way to get the full context, is to compare walltime performance between jobs at different scale. See Job Scaling for more details.

Example

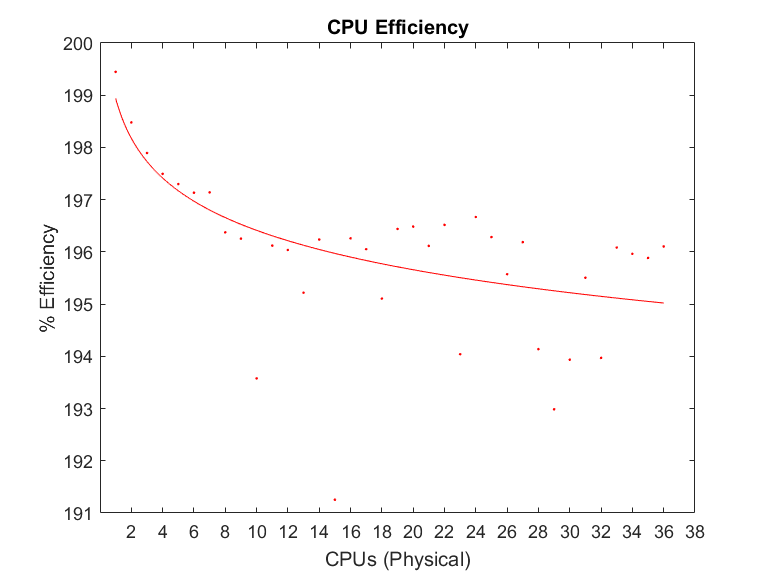

From the above plot of CPU efficiency, you might decide a 5% reduction of CPU efficiency is acceptable and scale your job up to 18 CPU cores .

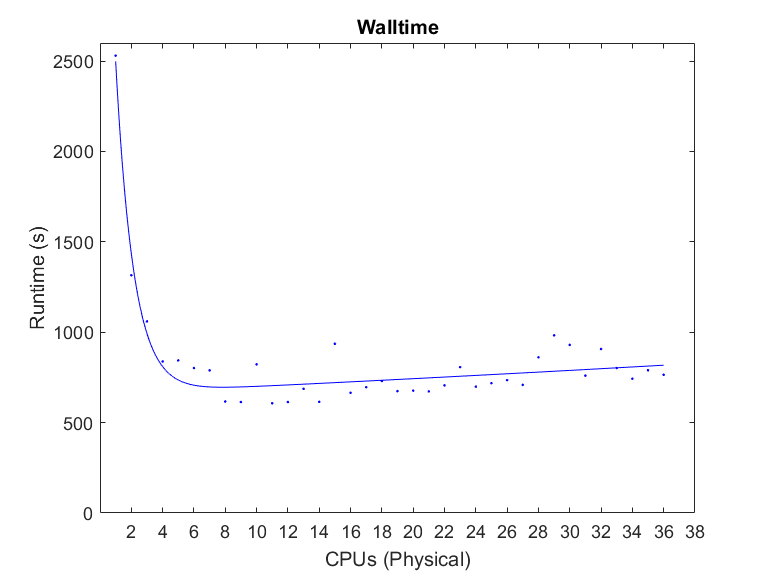

However, when looking at a plot of walltime it becomes apparent that performance gains per CPU added drop significantly after 4 CPUs, and in fact absolute performance losses (negative returns) are seen after 8 CPUs.
